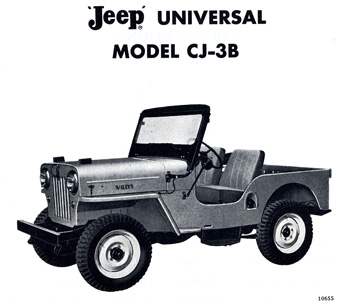

Description:
CJ-3B Field Guide, Kaiser Willys Catalog - Request Catalog Copy or Download
Technical Specifications
Length: 129 29/32” (3,30 m.)
Width: 68 7/8” (175 cm.)
Height: (overall): 66 1/4” (169 cm.)
Ground Clearance: 8” (20,3 cm.)
Tread (Front/Rear): 48 7/16” (123 cm.)
Tire Size: 6.00-16, Front 26, Rear 28 psi
Fuel Capacity: 10 1/2 Gal.
Weight (Gross): 3,500 lb. (1587,5 kg.)
Weight (Shipping): 2,132 lb. (967,1 kg.)
Weight (Curb): 2,243 lb. (1017,4 kg.)
Electrical: 6 Volt, after 1957 12 Volt
Transmission: 3 speed T-90
Transfer Case: 2 Speed Dana 18
Front Axle: Dana 25
Weight (Shipping): 2,132 lb. (967,1 kg.)
Weight (Curb): 2,243 lb. (1017,4 kg.)
Electrical: 6 Volt, after 1957 12 Volt
Transmission: 3 speed T-90
Transfer Case: 2 Speed Dana 18
Front Axle: Dana 25
Rear Axle: Dana 44
Wheelbase: 80” (203 cm.)
Other: 1-Piece Windshield
Engine: 4-134 F Head “Hurricane” Motor (All Years)
134.2 CID • 72 hp @ 4000 rpm
114 ft-lb torque • 6.9:1 compression
F-head
Wheelbase: 80” (203 cm.)
Other: 1-Piece Windshield
Engine: 4-134 F Head “Hurricane” Motor (All Years)
134.2 CID • 72 hp @ 4000 rpm
114 ft-lb torque • 6.9:1 compression
F-head
Serial Number Location(s):
Inside engine compartment on the upper passengers (right) side firewall.
Inside engine compartment on the upper passengers (right) side firewall.
Engine Number Location:
Stamped on a outcropping (boss) on the right front of the engine block behind the water pump.
Stamped on a outcropping (boss) on the right front of the engine block behind the water pump.
Vehicle Identification

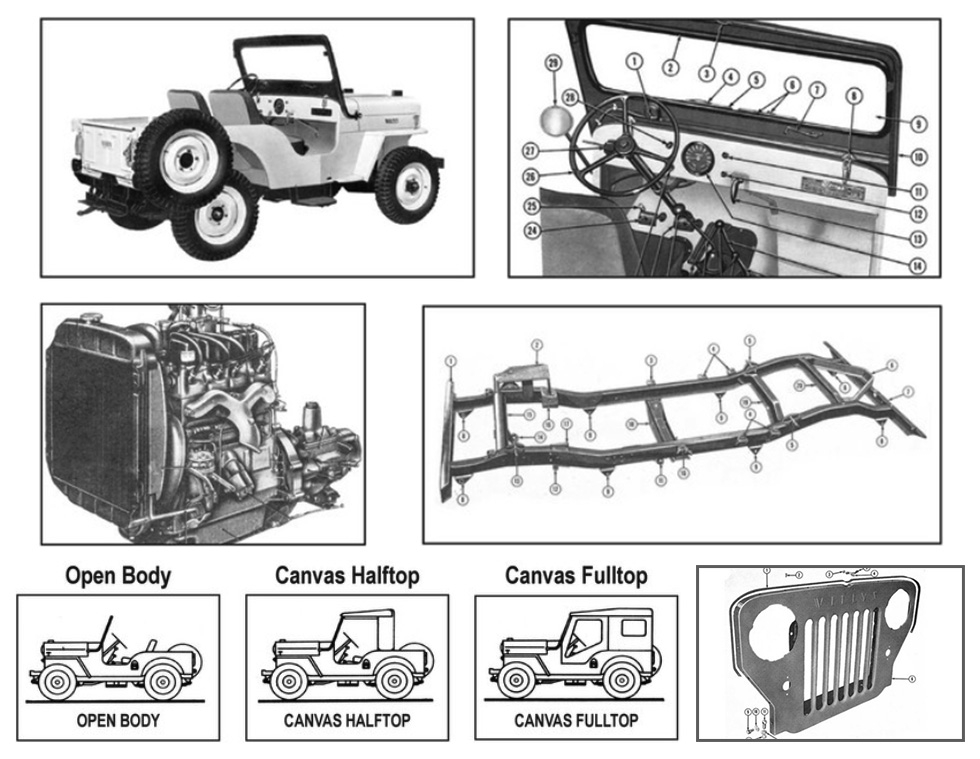

Main Identifying Characteristics:
High hood, new-style grille to accommodate the overhead valve Willys F-Head motor, flat front fenders, one-piece windshield with shorter front frame panel, spare tire mounted on rear passeners side, no glovebox, parking brake pull lever mounted in middle of the dash.
Model Differences by Year:
1957 the 12-volt electrical system was introduced.
