Technical Specifications
Length: 135 9/16” (3,44 m.)
Width: 71 3/4” (128 cm.)
Height: (overall): 67” (170 cm.)
Ground Clearance: 8” (20,3 cm.)
Tread (Front/Rear): 48 7/16” (123 cm.)
Tire Size: 6.00-16, Front 26, Rear 28 psi
Fuel Capacity: 10 1/2 Gal.
Weight (Shipping): 2,163 lb. (981,1 kg.)
Weight (Curb): 2,274 lb. (1031,5 kg.)
Electrical: 6 Volt, 12 Volt
Transmission: 3 speed T-90
Transfer Case: 2 Speed Dana 18
Front Axle: Dana 25 (1955–1960)
or Dana 27 (1961–1971)
Wheelbase: 81” (206 cm.)
Other: 1-Piece Windshield, Fenders curve down
Engine: 4-134 F Head “Hurricane” Motor (1955–1971)
134.2 CID • 60 hp @ 4000 rpm
114 ft-lb torque @ 2000 rpm
6.48:1 compression • F-head
Engine: V6-225 “Dauntless” Motor (1966–1971)
225 CID (3.68L) • 160 hp @ 4200 rpm
235 ft-lb torque @ 2400 rpm
9.0:1 compression • OHV
Bore x Stroke: 3.75” x 3.40”
Passengers side of dash (stamped on data plate).
Stamped on a outcropping (boss) on the right front of the engine block behind the water pump.

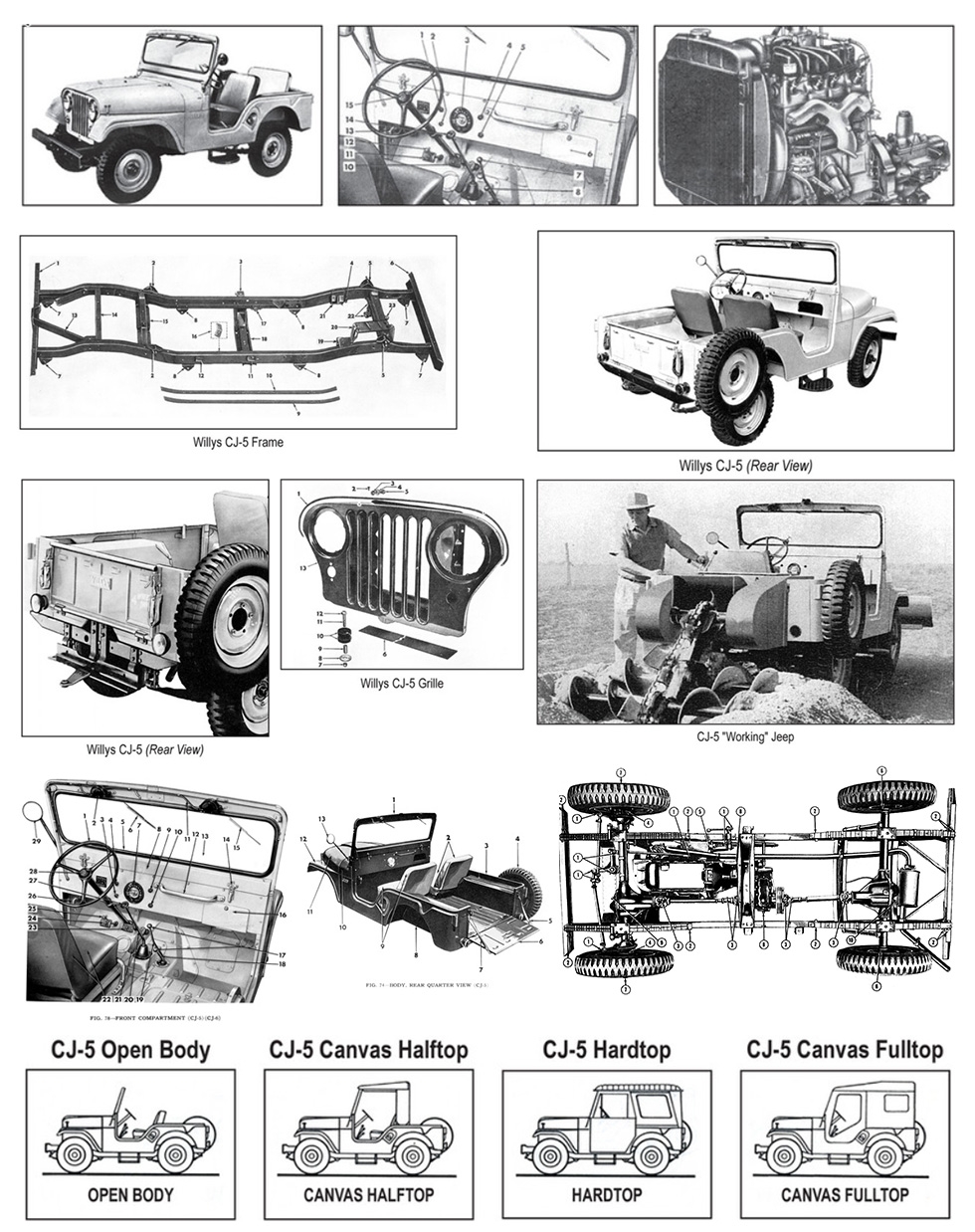

Vehicle Identification
Main Identifying Characteristics:

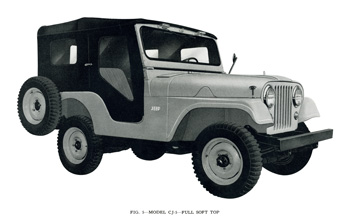

Rounded front fenders, 7-slot stamped grille, heavier rounded hood, One-piece windshield with top-mounted wipers, windshield hinged to top of cowl, spare tire mounted on rear passenger side, defroster, glove box on right side of dash. Thicker, larger seats, 3" fuel filler cap, tailgate.
Model Differences by Year:
1961-1964 Tuxedo Park Mark III & IV were introduced for the CJ-5A and CJ-6A models. Chrome bumpers, hood badges, column shift, an indian-ceramic steering wheel and other accessories distinguish this trim package.
