Description:

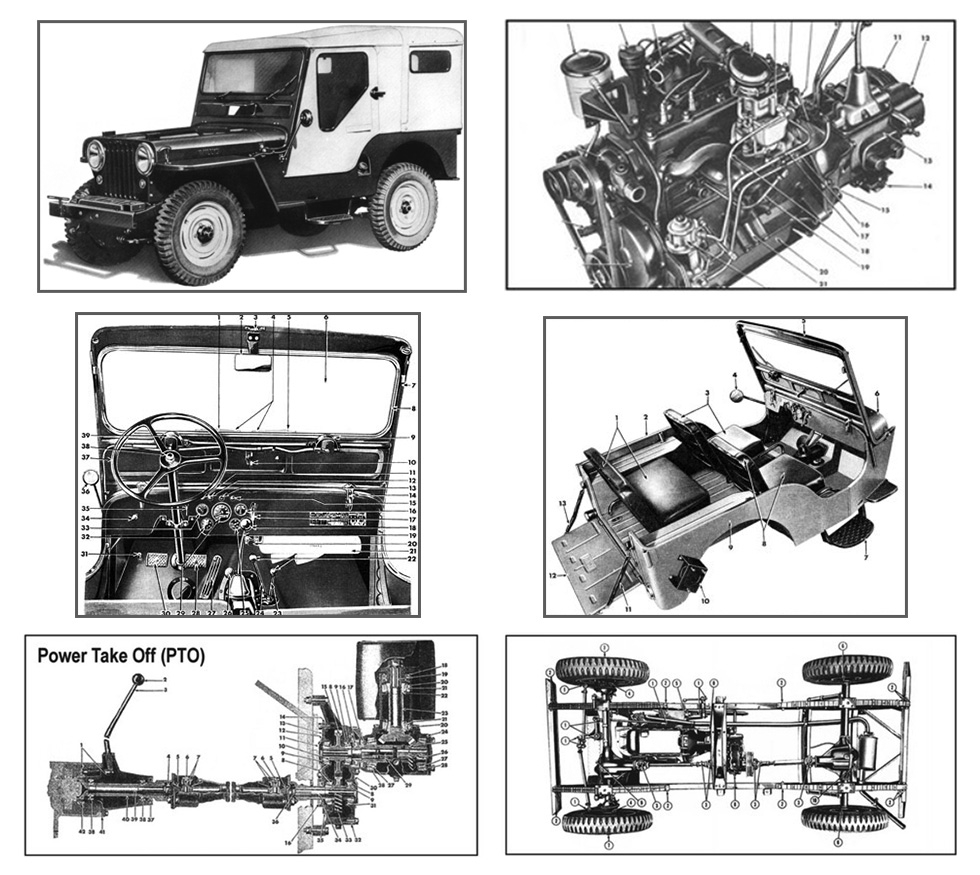

CJ-3A Field Guide, Kaiser Willys Catalog - Request Catalog Copy or Download
Technical Specifications
Length: 129 3/4” (3,29 m.)
Width: 59“ (149,8 cm.)
Height: (overall): 66 3/4” (170 cm.)
Tire Size: 6.00-16, Front 26, Rear 28 psi
Electrical: 6 Volt
Transmission: 3 speed T-90
Transfer Case: 2 Speed Dana 18
Front Axle: Dana 25
Transmission: 3 speed T-90
Transfer Case: 2 Speed Dana 18
Front Axle: Dana 25
Rear Axle: Dana 44
Wheelbase: 80” (203 cm.)
Other: 1-Piece Windshield w/center vent, Tailgate
Engine: 4-134 L Head Motor (463) (All Years)
Wheelbase: 80” (203 cm.)
Other: 1-Piece Windshield w/center vent, Tailgate
Engine: 4-134 L Head Motor (463) (All Years)
Serial Number Location(s):
Inside engine compartment on the upper passengers (right) side firewall.
Inside engine compartment on the upper passengers (right) side firewall.
Engine Number Location:
Stamped on a outcropping (boss) on the right front of the engine block behind the water pump.
Stamped on a outcropping (boss) on the right front of the engine block behind the water pump.
Vehicle Identification

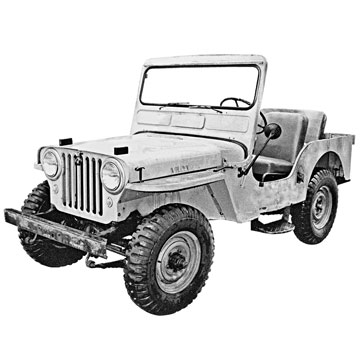

Main Identifying Characteristics:
One-piece windshield with rounded glass and center vent, bottom mounted windshield wipers, spare tire on rear passengers side, drivers side seat lowered and moved back for more leg/head room.
Model Differences by Year:
1951 had a special CJ-3A model with SN (451-GCI) called the Farm Jeep which was equipped with equipment such as: hydraulic lift, power take off (PTO), drawbar, propeller shaft guards, heavy duty springs and a variable speed belt driven governor.
